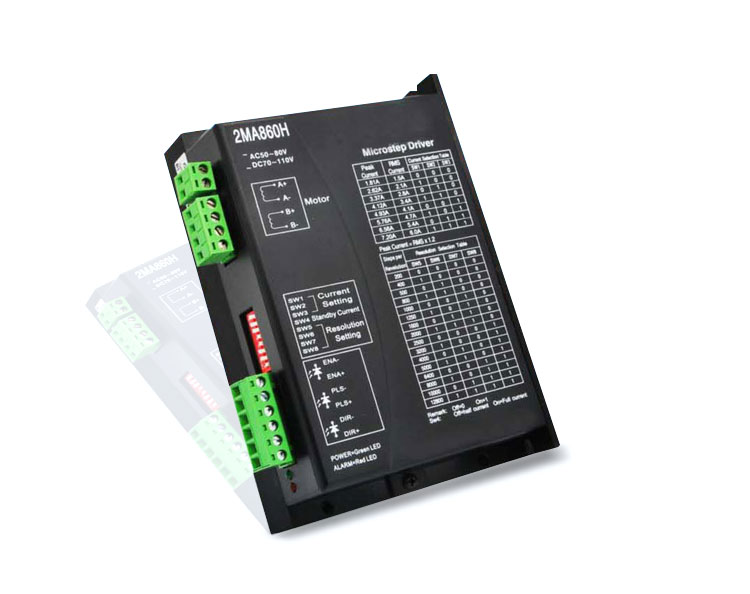

2MA860H（stepper driver）
Main character
1.AC 50-80(DC70-110V)power supply,adapt to the worst grip enviroment
2.H bridge 2pole the constant phase flow subdivided driving
3.Orignal creation speed self-adaption circuit,Automatic optimization
4.Subdivision current setting is convent
5.1-64 subdivition 16 kinds of operating mode
6.Over current,over voltage,under voltage,over temperature,short circuit protection
7.Off-line ena protection function
Electrical Indicators
|
Instructions |
Min values |
Typical values |
Max values |
|
Supply voltage |
1.5 |
- |
6.0 |
|
Normal work output current |
|
10 |
|
|
Logic input current |
|
10 |
|
|
Step pulse correspond frequency |
- |
- |
200 |
|
Pulse low level time |
2.5 |
- |
- |
Environment indicators
|
Cooling mode Natural cooling or forced cooling |
||
|
Using environment |
Occasion |
Avoid oil mist,dust,corrosive gas |
|
Storage temperature |
-10~80℃ |
|
|
Max environment temperature |
65℃ |
|
|
environmen humidity |
≤80%RH Non-Condensing,no frost |
|
|
Vibration |
|
5.9m/s2 |
|
Weight |
|
0.6kg |
Shape Dimension:unit=mm
notice
Ensure well ventilatcd when install the drive. regularly check the cooling fan in normal operation.
Ensre that the distance between is not less than 5cm;when multiple drivers are parallcl used in the cabinet. ground terminals must be cnnected well between driver and equipment,in order to ensure the safety of usage
