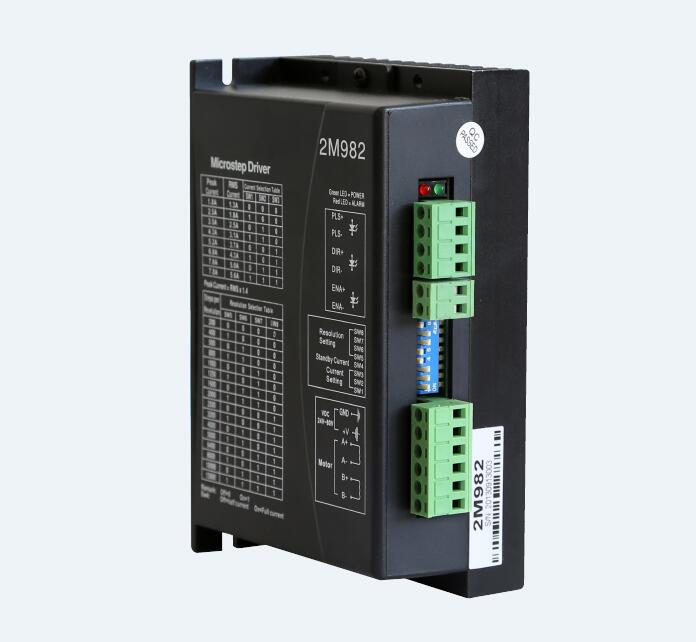

2M982-Driver

Key Features:
24 to 80VDC Supply Voltage
H-Bridge, 2 Phase Bi-polar Micro-stepping Drive
Suitable for 2-phase, 4, 6 and 8 leads step motors, with Nema size 23 to 34
Output current selectable from 1.8 ~ 7.8 peak
Current reduction by 50% automatically, when motor standstill mode is enabled
Pulse Input frequency up to 200 kHz
Optically isolated differential TTL inputs for Pulse, Direction and Enable signal inputs
Selectable resolutions up to 12800 steps
Over Voltage, Coil to Coil and Coil to Ground short circuit protection.

Buy online

Detail

2M982-Driver

Electrical Indicators

Parameters	Min	Typical	Max	Unit
Output Current(Peak)	1.8	-	7.8	Amps
Supply voltage	24	48	80	VDC
Logic Input Current	7	10	16	mA
Pulse input frequency	0	-	200	KHz
Low Level Time	2.5			μsec

Environment indicators

Cooling	Natural Cooling or Forced Convection
Environment	Space	Avoid dust,oil frost and corrosive gases
	Ambient Temperature	0℃-50℃
	Humidity	40-80%RH
	Vibration	5.9m/s² Max

Storage Temp.	-10℃-80℃
Weight	Approx.500 gram

Shape Dimension:unit=mm

notice
Ensure well ventilatcd when install the drive. regularly check the cooling fan in normal operation.
Ensre that the distance between is not less than 5cm;when multiple drivers are parallcl used in the cabinet. ground terminals must be cnnected well between driver and equipment,in order to ensure the safety of usage
