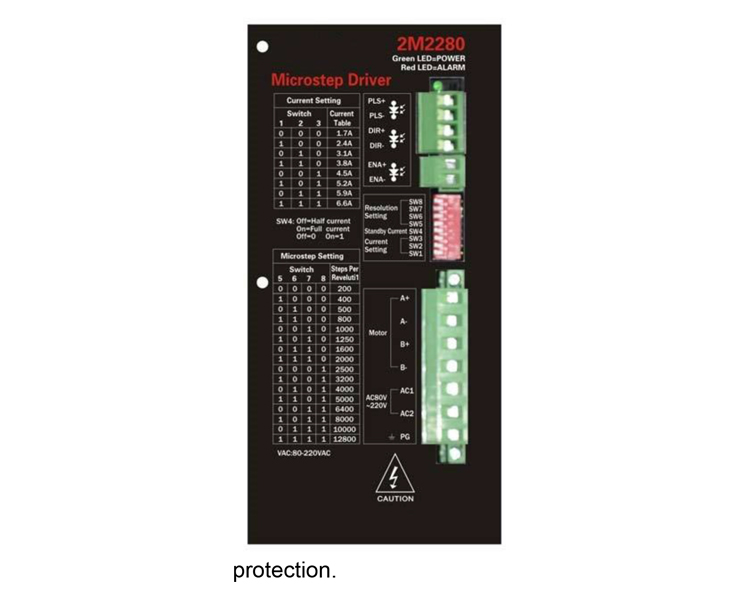

YUHAI-2M2280

Key Features:
1、 AC80 to 220V Supply Voltage
2、 H-Bridge, 2 Phase Bi-polar Micro-stepping Drive
3、 Suitable for 2-phase, 4, 6 and 8 leads step motors, with Nema  size 23 to 42
4、 Output current selectable from 1.7~ 6.6A peak
5、Current  reduction  by  50%  automatically,  when  motor  standstill mode is enabled
6、 Pulse Input frequency up to 200 kHz
7、 Optically isolated differential TTL inputs for Pulse,   Direction and Enable signal inputs
8、 Selectable resolutions up to 12800 steps
9、Over Voltage, Coil  to Coil  and Coil  to Ground  short  circuit

Electrical Indicators

Environment indicators

Shape Dimension:unit=mm

notice
Ensure well ventilatcd when install the drive. regularly check the cooling fan in normal operation.
Ensre that the distance between is not less than 5cm;when multiple drivers are parallcl used in the cabinet. ground terminals must be cnnected well between driver and equipment,in order to ensure the safety of usage
