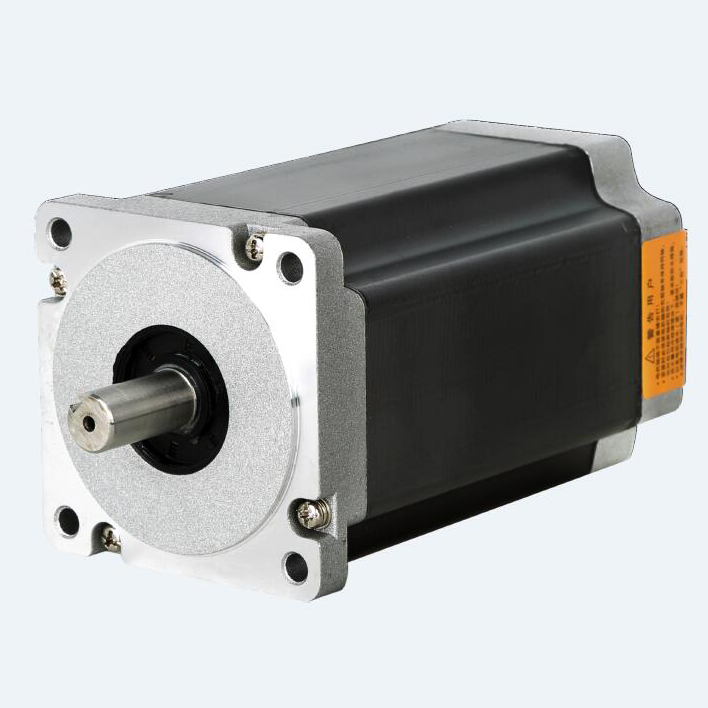

86 BYG Three-phase stepper motor
Temperature Rise: 70℃ Max (Rated current)
Step Angle Accuracy: 5%
Ambient temperature: -20℃~+50℃
Insulation Resistance: 100MΩ 500V DC
Dielectric Strength: 500V AC 1min
High voltage 1500AC 1min
Insulation class: B
