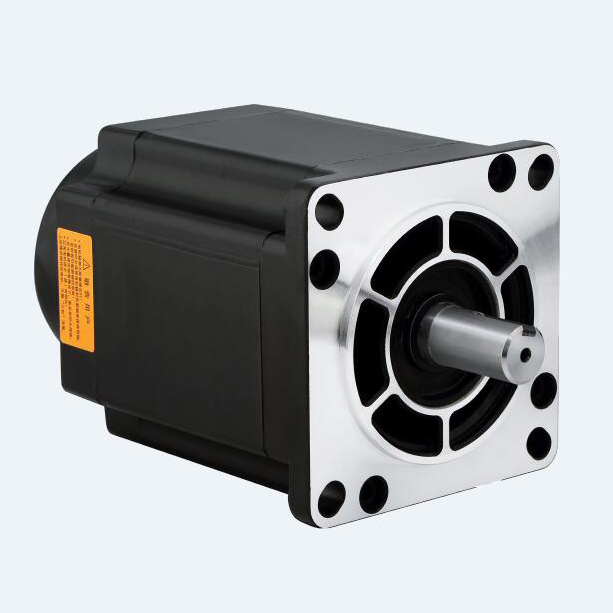

110 BYG Three-phase stepper motor
Temperature Rise: 70
| Temperature | O℃ -55℃ |
| Number of pole pairs | 5 |
| Absolute encoder | 17/33bit、22/38bit、23/39bit |
| Less humidity | 90% |
| Absolute class | B |
| Safety Class | IP65 |
| Insulation and voltage resistance | AC1500V,1 min |
| Insulation resistance | DC500V, 10M above |
| Vibration: Under | 2.5G Following |
| Altitude: Under | 1000m Following |
| Work system | Continuous |
| Installation Method | Flange installation |
